Add(MainForm,16297664,77,336)
{
 Width=687
 Height=541
 Position=1
}
Add(Img_Arc,8255685,427,497)
{
 Point2AsOffset=0
 Size=3
 Point(Point1)
 Point(Point2)
 Point(Point3)
 Point(Point4)
 Point(doDirection)
 link(onDraw,15251476:doDraw,[])
 link(Bitmap,11805101:getVar,[(433,479)(391,479)])
 link(Point1,4619322:Var2,[])
 link(Point2,7960578:Var2,[])
 link(Point3,2063720:Point,[])
 link(Point4,12049784:Point,[])
}
Add(PaintBox,880944,308,224)
{
 Left=40
 Top=110
 Width=600
 Height=300
 Color=16777215
 ClearBeforeDraw=0
 link(onBeforeDraw,9230487:doCalc,[])
}
Add(Edit,5113297,77,224)
{
 Left=45
 Top=45
 Text="100"
 link(onChange,8919054:doWork2,[])
}
Add(Edit,9314071,119,238)
{
 Left=120
 Top=45
 Text="100"
 link(onChange,12839978:doWork2,[])
}
Add(Edit,6904018,161,252)
{
 Left=245
 Top=45
 Text="200"
 link(onChange,528179:doWork2,[])
}
Add(Edit,13102730,203,266)
{
 Left=315
 Top=45
 Text="100"
 link(onChange,13288155:doWork2,[])
}
Add(PointXY,2063720,455,371)
{
 link(X,3300599:getVar,[])
 link(Y,15005020:getVar,[])
}
Add(HubEx,8919054,280,224)
{
 link(onEvent,880944:doRefresh,[])
}
Add(HubEx,12839978,280,238)
{
 Angle=3
 link(onEvent,8919054:doWork3,[])
}
Add(HubEx,528179,280,252)
{
 Angle=3
 link(onEvent,12839978:doWork3,[])
}
Add(HubEx,13288155,280,266)
{
 Angle=3
 link(onEvent,528179:doWork3,[])
}
Add(Img_Rectangle,15251476,497,497)
{
 Point2AsOffset=0
 LineStyle=2
 Point(Point1)
 Point(Point2)
 link(onDraw,14977473:doDraw,[])
 link(Bitmap,3596754:getVar,[])
 link(Point1,4619322:Var3,[(517,485)])
 link(Point2,7960578:Var3,[(524,466)])
}
Add(Edit,16653976,245,280)
{
 Left=434
 Top=44
 Text="60"
 link(onChange,13288155:doWork3,[(284,286)])
}
Add(Img_Point,3910897,595,497)
{
 Color=32768
 Size=3
 Point(X)
 Point(Y)
 link(onDraw,7167075:doDraw,[])
 link(Bitmap,7743151:getVar,[])
 link(X,10233706:getVar,[])
 link(Y,15162992:getVar,[])
}
Add(Img_Point,7167075,651,497)
{
 Color=255
 Size=3
 Point(X)
 Point(Y)
 link(Bitmap,11860968:getVar,[])
 link(X,13983617:getVar,[])
 link(Y,1759900:getVar,[])
}
Add(PointXY,12049784,462,448)
{
 link(X,7833215:getVar,[])
 link(Y,2165680:getVar,[])
}
Add(Img_Point,14977473,546,497)
{
 Color=8388736
 Size=3
 Point(X)
 Point(Y)
 link(onDraw,3910897:doDraw,[])
 link(Bitmap,10981796:getVar,[])
 link(X,6463125:Var2,[])
 link(Y,1453321:Var1,[(566,278)])
}

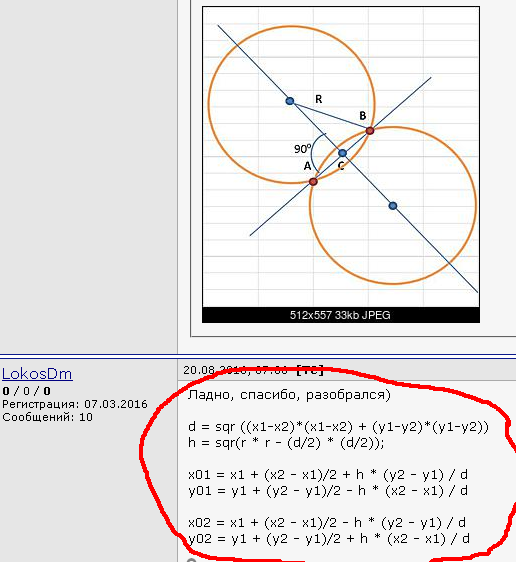

Add(MathParse,13714762,490,224)
{
 MathStr="sqrt(sqr(%2) - sqr(%1 / 2))"
 link(onResult,7520816:doCalc,[])
 link(X1,16356677:Var2,[])
 link(X2,13202318:getVar,[])
}
Add(MathParse,7520816,553,224)
{
 DataCount=6
 MathStr="%1 + (%2 - %1)/2 + %5 * (%4 - %3) / %6"
 Point(doMathStr)
 link(onResult,9757581:doCalc,[])
 link(X1,7118581:getVar,[])
 link(X2,5412053:getVar,[])
 link(X3,299756:getVar,[])
 link(X4,4213986:getVar,[])
 link(X5,13217560:Var2,[])
 link(X6,6056137:Var2,[])
}
Add(MathParse,9757581,623,224)
{
 DataCount=6
 MathStr="%3 + (%4 - %3)/2 - %5 * (%2 - %1) / %6"
 Point(doMathStr)
 link(onResult,8513123:doOperation,[])
 link(X1,2347075:getVar,[])
 link(X2,2234635:getVar,[])
 link(X3,13282408:getVar,[])
 link(X4,8594046:getVar,[])
 link(X5,13217560:Var3,[(657,205)])
 link(X6,6056137:Var3,[(664,212)])
}
Add(LineBreakEx,6567920,77,273)
{
 Caption="x1"
 Type=3
 link(_Data,5113297:Text,[])
}
Add(LineBreakEx,14106423,161,301)
{
 Caption="x2"
 Type=3
 link(_Data,6904018:Text,[])
}
Add(LineBreakEx,3615278,119,287)
{
 Caption="y1"
 Type=3
 link(_Data,9314071:Text,[])
}
Add(LineBreakEx,12513766,203,308)
{
 Caption="y2"
 Type=3
 link(_Data,13102730:Text,[])
}
Add(LineBreakEx,285935,245,322)
{
 Caption="r"
 Type=3
 link(_Data,16653976:Text,[])
}
Add(LineBreakEx,3300599,455,329)
{
 Caption="x1"
 Type=2
}
Add(LineBreakEx,7833215,462,406)
{
 Caption="x2"
 Type=2
}
Add(LineBreakEx,15005020,462,343)
{
 Caption="y1"
 Type=2
}
Add(LineBreakEx,2165680,469,420)
{
 Caption="y2"
 Type=2
}
Add(LineBreakEx,10233706,602,455)
{
 Caption="x1"
 Type=2
}
Add(LineBreakEx,15162992,609,469)
{
 Caption="y1"
 Type=2
}
Add(LineBreakEx,13983617,658,455)
{
 Caption="x2"
 Type=2
}
Add(LineBreakEx,1759900,665,469)
{
 Caption="y2"
 Type=2
}
Add(LineBreakEx,7118581,553,140)
{
 Caption="x1"
 Type=2
}
Add(LineBreakEx,5412053,560,154)
{
 Caption="x2"
 Type=2
}
Add(LineBreakEx,299756,567,168)
{
 Caption="y1"
 Type=2
}
Add(LineBreakEx,4213986,574,182)
{
 Caption="y2"
 Type=2
}
Add(LineBreakEx,2347075,623,140)
{
 Caption="x1"
 Type=2
}
Add(LineBreakEx,2234635,630,154)
{
 Caption="x2"
 Type=2
}
Add(LineBreakEx,13282408,637,168)
{
 Caption="y1"
 Type=2
}
Add(LineBreakEx,8594046,644,182)
{
 Caption="y2"
 Type=2
}
Add(GetDataEx,13217560,581,200)
{
 Angle=3
 link(Data,13714762:Result,[(540,205)(540,268)(496,268)])
}
Add(GetDataEx,4619322,441,480)
{
 Angle=3
 link(Data,14588321:Point,[(438,485)(438,314)(706,314)])
}
Add(GetDataEx,7960578,448,461)
{
 Angle=3
 link(Data,12541359:Point,[(445,466)(445,323)(790,323)])
}
Add(PointXY,12541359,784,273)
{
 link(X,10044231:Var2,[])
 link(Y,10044231:Var3,[(797,264)])
}
Add(Math,1796089,784,224)
{
 OpType=2
 Op2=2
 link(onResult,8255685:doDraw,[(838,230)(838,538)(417,538)(417,503)])
 link(Op1,15610399:getVar,[])
}
Add(LineBreakEx,15610399,784,196)
{
 Caption="r"
 Type=2
}
Add(Math,8513123,700,224)
{
 OpType=1
 Op2=2
 link(onResult,7698133:doOperation,[])
 link(Op1,6463125:Var3,[(706,203)(684,203)(684,271)])
 link(Op2,5121774:getVar,[])
}
Add(GetDataEx,10044231,784,259)
{
 link(Data,1796089:Result,[])
}
Add(PointXY,14588321,700,273)
{
 link(X,8513123:Result,[])
 link(Y,7698133:Result,[(713,265)(748,265)])
}
Add(Math,7698133,742,224)
{
 OpType=1
 Op2=2
 link(onResult,1796089:doOperation,[])
 link(Op1,1453321:Var3,[(748,190)(692,190)(692,278)])
 link(Op2,10779681:getVar,[])
}
Add(LineBreakEx,10779681,749,196)
{
 Caption="r"
 Type=2
}
Add(LineBreakEx,5121774,707,196)
{
 Caption="r"
 Type=2
}
Add(GetDataEx,6463125,553,266)
{
 link(Data,7520816:Result,[])
}
Add(GetDataEx,1453321,623,273)
{
 link(Data,9757581:Result,[])
}
Add(MathParse,9230487,350,224)
{
 DataCount=4
 MathStr="sqrt((%1-%2) * (%1-%2) + (%3-%4) * (%3-%4))"
 link(onResult,13272551:doOperation,[])
 link(X1,11566714:getVar,[])
 link(X2,2880125:getVar,[])
 link(X3,4691825:getVar,[])
 link(X4,6505638:getVar,[])
}
Add(LineBreakEx,11566714,350,126)
{
 Caption="x1"
 Type=2
}
Add(LineBreakEx,2880125,357,140)
{
 Caption="x2"
 Type=2
}
Add(LineBreakEx,4691825,364,154)
{
 Caption="y1"
 Type=2
}
Add(LineBreakEx,6505638,371,168)
{
 Caption="y2"
 Type=2
}
Add(LineBreakEx,13202318,497,189)
{
 Caption="r"
 Type=2
}
Add(LineBreakEx,11860968,651,441)
{
 Caption="bmp"
 Type=2
}
Add(LineBreakEx,7743151,595,441)
{
 Caption="bmp"
 Type=2
}
Add(LineBreakEx,10981796,546,455)
{
 Caption="bmp"
 Type=2
}
Add(LineBreakEx,3596754,497,448)
{
 Caption="bmp"
 Type=2
}
Add(LineBreakEx,11805101,385,448)
{
 Caption="bmp"
 Type=2
}
Add(LineBreakEx,7314358,308,266)
{
 Caption="bmp"
 Type=3
 link(_Data,880944:Bitmap,[])
}
Add(If_else,16004022,441,224)
{
 Type=4
 link(onTrue,13714762:doCalc,[])
 link(onFalse,5840770:doDraw,[(479,237)(479,153)])
 link(Op2,6253326:Var2,[])
}
Add(LineBreakEx,3442907,399,196)
{
 Caption="r"
 Type=2
}
Add(Math,13272551,399,224)
{
 OpType=2
 Op2=2
 link(onResult,16004022:doCompare,[])
 link(Op1,3442907:getVar,[])
 AddHint(23,-50,30,13,Op2)
}
Add(LineBreakEx,11565827,497,119)
{
 Caption="bmp"
 Type=2
}
Add(Img_TextInRect,5840770,497,147)
{
 Point1=65537
 Point2=19661400
 Font=[MS Sans Serif,14,1,0,1]
 Text="Радиус меньше половины расстояния"
 AlignHorizon=2
 Alignvertical=2
 link(Bitmap,11565827:getVar,[])
}
Add(CheckBox,15798334,210,77)
{
 Left=500
 Top=45
 Width=80
 Caption="pos1 / pos2"
 link(onCheck,16584810:doEvent1,[])
}
Add(StrList,9664319,455,49)
{
 Strings=#77:%1 + (%2 - %1)/2 + %5 * (%4 - %3) / %6|%3 + (%4 - %3)/2 - %5 * (%2 - %1) / %6|77:%1 + (%2 - %1)/2 - %5 * (%4 - %3) / %6|%3 + (%4 - %3)/2 + %5 * (%2 - %1) / %6|
 Point(doGetString)
 Point(onGetString)
 link(onGetString,2902760:doSplit,[])
}
Add(StrPart,2902760,497,56)
{
 Char="|"
 link(onSplit,9757581:doMathStr,[(617,62)(617,237)])
 link(onPart,7520816:doMathStr,[(545,69)(545,237)])
}
Add(Hub,16584810,252,77)
{
 link(onEvent1,9664319:doGetString,[])
 link(onEvent2,7489636:doWork1,[(284,90)])
}
Add(CheckBox,4312292,210,126)
{
 Left=595
 Top=45
 Caption="<-- / -->"
 link(onCheck,2043590:doEvent1,[])
}
Add(Hub,2043590,252,126)
{
 link(onEvent1,8255685:doDirection,[(297,132)(297,510)])
 link(onEvent2,7489636:doWork2,[])
}
Add(HubEx,7489636,280,133)
{
 Angle=1
 link(onEvent,8919054:doWork1,[])
}
Add(GetDataEx,6253326,448,207)
{
 Angle=3
 link(Data,9230487:Result,[(436,212)(436,272)(356,272)])
}
Add(GetDataEx,16356677,490,207)
{
 Angle=3
 link(Data,6253326:Var3,[])
}
Add(GetDataEx,6056137,588,207)
{
 Angle=3
 link(Data,16356677:Var3,[])
}
