SELECT -- Выбрать
t, -- температуру
strftime('%H',data)--получаем часы из колонки data например 19 часов
-- получить минуты strftime('%M',data) например 30 минут
-- т.к. 30/60 в SQLite = 0 (div), то cast(strftime('%M',data) as Real) преобразовываем минуты в Real
-- т.е. минуты станут 30.0
+ cast(strftime('%M',data) as Real)/60
-- можно без CAST - strftime('%M',data)/60.0
-- и результат 19+0.5=19.5 назвал tm (можно было Вася или Петя)
from data
ORDER BY tm;
-- Чтобы не писать
-- ORDER BY strftime('%H',data)+cast(strftime('%M',data) as Real)/60

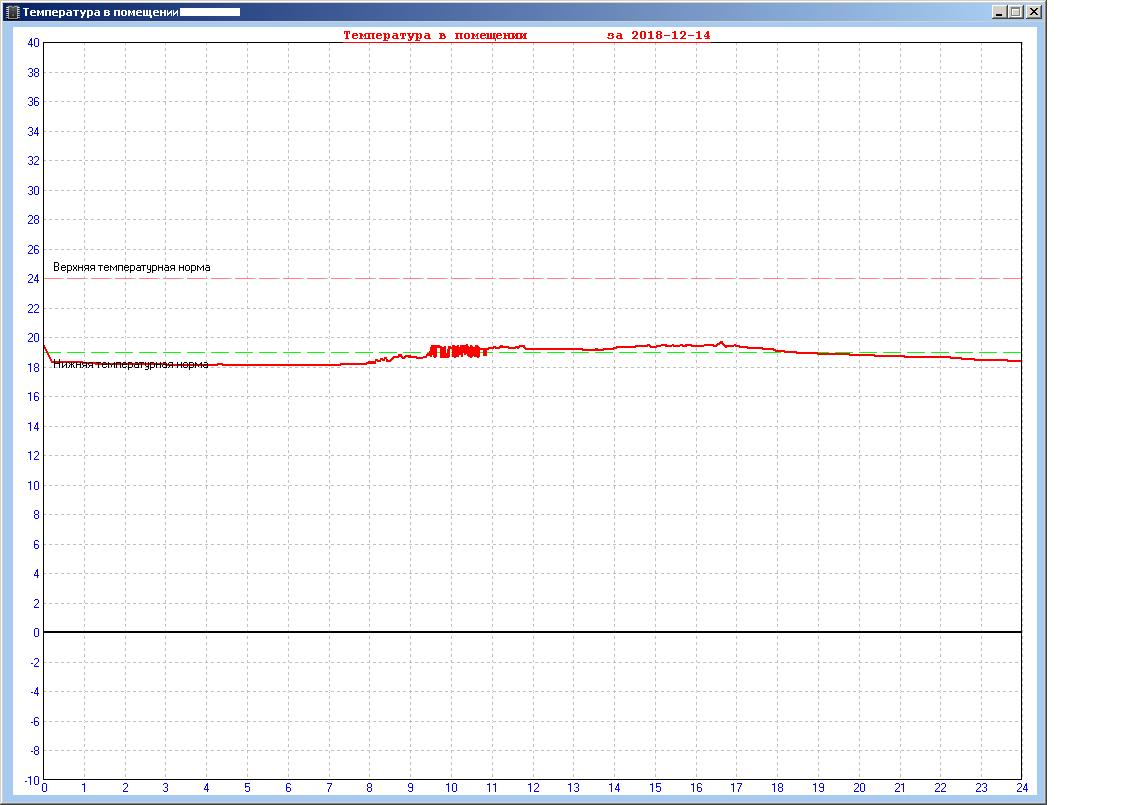

Add(Label,5273543,476,385)
{
 Left=50
 Top=260
 Width=160
 Color=12639424
 Transparent=0
 Caption="Нижняя температурная норма"
}
Add(Label,7506625,434,385)
{
 Left=50
 Top=195
 Width=165
 Color=12639424
 Transparent=0
 Caption="Верхняя температурная норма"
}

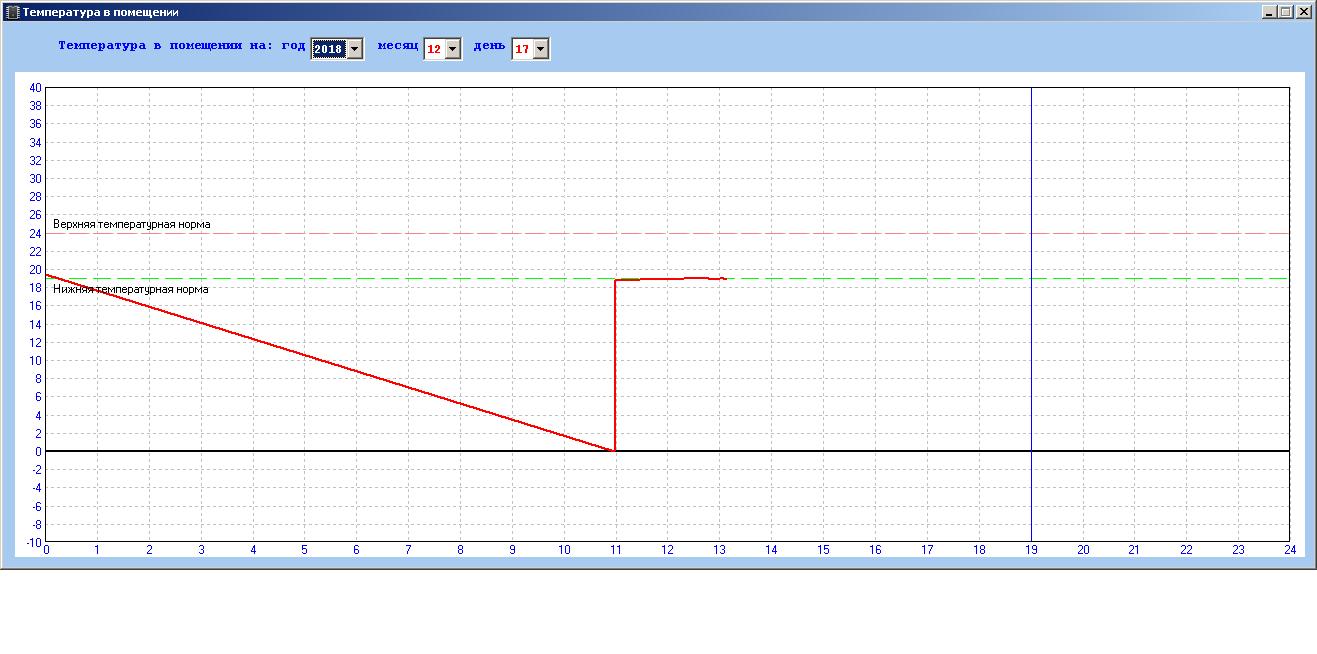

Add(Label,6604675,644,385)
{
 Left=55
 Top=15
 Width=479
 Height=20
 Color=15780518
 Font=[Courier New,10,1,16711680,204]
 Transparent=0
 Caption="Температура в помещении на: год         месяц       день "
 AutoSize=1
}
Add(MainForm,15663453,434,266)
{
 Width=1317
 Height=570
 Color=15780518
 Font=[MS Sans Serif,8,0,16711680,1]
 Caption="Температура в помещении"
 BorderStyle=1
 Position=1
 Point(onClose)
 Point(Close)
 link(onCreate,7935657:doOpen,[])
}
Add(Plotter,6761042,686,385)
{
 Left=12
 Top=50
 Width=1290
 Height=485
 Color=16777215
 Enabled=1
 Name="tp"
 GridX=24
 GridY=25
 MinH=-10
 MaxH=40
 MaxW=24
}
Add(PlotAxis,16137541,602,385)
{
 Grapher="tp"
 Name="ноль"
 Color=0
 Size=2
}
Add(PlotAxis,4916857,560,385)
{
 Grapher="tp"
 Name="19"
 Color=65280
 Style=1
 Y=19
}
Add(PlotAxis,5954945,518,385)
{
 Grapher="tp"
 Name="24"
 Color=8421631
 Style=1
 Y=24
}
Add(DS_SQLite,7935657,497,280)
{
 Name="rt"
 FileName="C:\\Room_temperature.db"
 link(onOpen,14820311:doEvent1,[])
}
Add(PlotLines,14221590,756,385)
{
 Grapher="tp"
 Size=2
 link(ValueY,8253175:Var2,[])
 link(ValueX,1978545:Var2,[])
}
Add(DSC_Query,2261516,686,301)
{
 DSManager="rt"
 link(onQuery,12918382:doValue,[])
 link(onColumns,14221590:doClear,[(737,314)(737,398)])
}
Add(MT_MultiMem,12918382,756,301)
{
 link(onData,14555005:doEvent1,[])
}
Add(DSC_Query,2330491,574,112)
{
 SQL="SELECT DISTINCT strftime('%Y', data) FROM data;"
 DSManager="rt"
 link(onQuery,6143896:doAdd,[])
 link(onColumns,6143896:doClear,[])
}
Add(Hub,14820311,539,280)
{
 OutCount=4
 link(onEvent1,2330491:doQuery,[(563,286)(563,118)])
 link(onEvent2,8415418:doWork2,[(581,293)(581,195)])
 link(onEvent3,2998482:doWork2,[(605,300)(605,251)])
 link(onEvent4,7251156:doWork2,[])
}
Add(ComboBox,6143896,623,112)
{
 Left=307
 Top=15
 Height=21
 Color=16777215
 Font=[Courier New,9,1,255,204]
 Text="9999"
 ReadOnly=0
 Point(EditText)
 link(onClick,8415418:doWork1,[(667,125)(667,173)(613,173)])
}
Add(ComboBox,3791527,735,189)
{
 Left=420
 Top=15
 Width=40
 Height=21
 Color=16777215
 Font=[Courier New,9,1,255,204]
 Text="99"
 ReadOnly=0
 Point(EditText)
 link(onClick,2998482:doWork1,[(779,202)(779,225)(676,225)])
}
Add(ComboBox,6004007,812,245)
{
 Left=508
 Top=15
 Width=40
 Height=21
 Color=16777215
 Font=[Courier New,9,1,255,204]
 Text="99"
 ReadOnly=0
 Point(EditText)
 link(onClick,7251156:doWork1,[(856,258)(856,281)(613,281)])
}
Add(FormatStr,10998629,637,189)
{
 DataCount=1
 Mask="SELECT DISTINCT strftime('%m', data) FROM data WHERE strftime('%Y', data)='%1';"
 link(onFString,9057737:doQuery,[])
 link(Str1,6002894:Var2,[])
}
Add(DSC_Query,9057737,686,189)
{
 DSManager="rt"
 link(onQuery,3791527:doAdd,[])
 link(onColumns,3791527:doClear,[])
}
Add(FormatStr,10501672,686,245)
{
 Mask="SELECT DISTINCT strftime('%d', data) FROM data WHERE (strftime('%Y', data)='%1') and (strftime('%m', data)='%2');"
 link(onFString,1775200:doQuery,[])
 link(Str1,6002894:Var3,[(692,180)])
 link(Str2,3794592:Var2,[])
}
Add(DSC_Query,1775200,735,245)
{
 DSManager="rt"
 link(onQuery,6004007:doAdd,[])
 link(onColumns,6004007:doClear,[])
}
Add(GetDataEx,6002894,637,175)
{
 link(Data,6143896:EditText,[])
}
Add(HubEx,8415418,609,189)
{
 link(onEvent,10998629:doString,[])
}
Add(HubEx,2998482,672,245)
{
 link(onEvent,10501672:doString,[])
}
Add(FormatStr,2233980,623,301)
{
 DataCount=3
 Mask="SELECT t,strftime('%H',data)+strftime('%M',data)/60.0 AS tm from data \r\n WHERE date(data)='%1-%2-%3'\r\n ORDER BY tm;"
 link(onFString,2261516:doQuery,[])
 link(Str1,6002894:Var1,[(629,180)])
 link(Str2,3794592:Var1,[(636,233)])
 link(Str3,6004007:EditText,[(643,290)])
}
Add(HubEx,7251156,609,301)
{
 link(onEvent,2233980:doString,[])
}
Add(GetDataEx,3794592,693,228)
{
 Angle=1
 link(Data,3791527:EditText,[(755,233)])
}

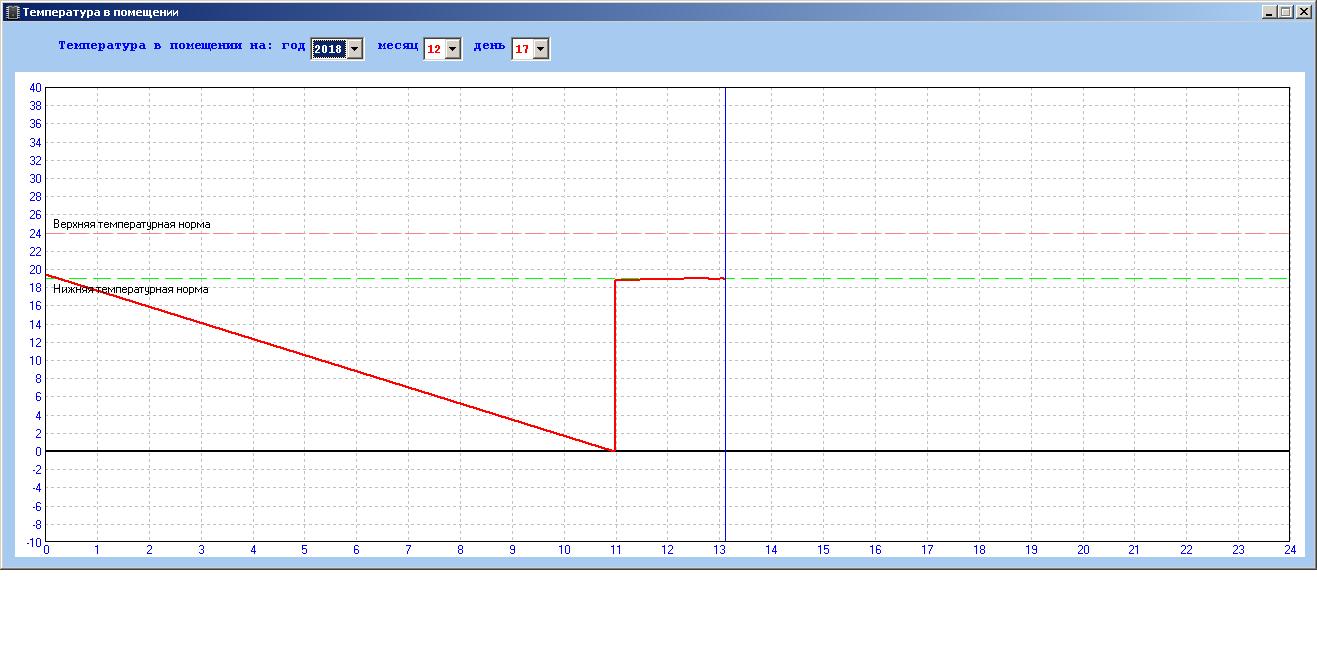

Add(PlotAxis,14603972,826,385)
{
 Grapher="tp"
 Name="kl"
 Color=16711680
 Angle=90
 link(X,1978545:Var3,[(832,348)])
 link(Y,8253175:Var1,[(839,363)(753,363)(753,355)])
}
Add(Hub,14555005,798,301)
{
 link(onEvent1,14221590:doAdd,[(864,307)(864,427)(745,427)(745,391)])
 link(onEvent2,14603972:doAxis,[(819,314)(819,391)])
}
Add(GetDataEx,8253175,756,350)
{
 link(Data,12918382:Value1,[])
}
Add(Timer,12080299,539,315)
{
 link(onTimer,7251156:doWork3,[(613,321)])
}
Add(GetDataEx,1978545,763,343)
{
 link(Data,12918382:Value2,[])
}

SELECT DISTINCT strftime('%d', data) AS de FROM data WHERE (strftime('%Y%m', data)='%1%2') ORDER BY de DESC;

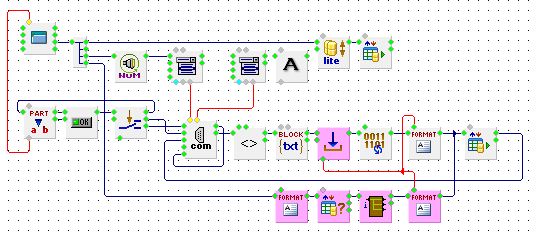

Add(MainForm,6229021,539,329)
{
 Width=451
 Height=128
 Color=15780518
 Caption="Температура в помещении"
 BorderStyle=1
 Position=1
 Point(onClose)
 Point(Close)
 link(onCreate,7098561:doEvent1,[])
 link(Close,11914673:Left,[(545,317)(523,317)(523,459)(545,459)])
}
Add(Hub,7098561,588,343)
{
 OutCount=4
 link(onEvent1,7935657:doOpen,[])
 link(onEvent2,4937493:doEnumPorts,[(616,356)(616,363)])
 link(onEvent3,4404277:doTimer,[(614,363)(614,447)(548,447)(548,531)])
 link(onEvent4,3233130:doString,[(690,370)(690,608)])
}
Add(DS_SQLite,7935657,833,343)
{
 Name="rt"
 FileName="C:\\Room_temperature.db"
 link(onOpen,1699441:doExec,[])
}
Add(DSC_Exec,1699441,875,343)
{
 SQL="CREATE TABLE IF NOT EXISTS data(\r\n data REAL,\r\n t REAL);\r\n "
 DSManager="rt"
}
Add(Label,7480715,791,357)
{
 Left=60
 Top=14
 Width=83
 Height=42
 Color=15780518
 Font=[MS Sans Serif,8,1,16711680,1]
 WinStyle=4
 Caption="COM-порт №°\r\n\r\nСкорость"
 AutoSize=1
}
Add(If_else,2513173,763,434)
{
 Type=5
 Op2=String()
 link(onTrue,8651886:doEvent1,[])
}
Add(ComboBox,7690426,749,357)
{
 Left=125
 Top=39
 Width=75
 Height=21
 Color=15780518
 Font=[MS Sans Serif,8,1,0,1]
 WinStyle=4
 Strings=#3:300|3:600|4:1200|4:2400|4:4800|4:9600|5:14400|5:19200|5:28800|5:38400|5:57600|6:115200|
 Text="19200"
 Point(EditText)
}
Add(ComboBox,8658105,686,357)
{
 Left=150
 Top=13
 Width=50
 Height=21
 Color=15780518
 Font=[MS Sans Serif,8,1,0,1]
 WinStyle=4
 Text=""
 DataType=1
 ReadOnly=0
 DropDownCount=15
 Point(EditText)
}
Add(Switch,7986566,630,413)
{
 DataOn=String(255,СТОП)
 DataOff=String(0,ПУСК)
 Point(State)
 Point(onOff)
 Point(onOn)
 link(onSwitch,11914673:doSplit,[(670,419)(670,407)(533,407)(533,412)])
 link(onOff,6263210:doClose,[(681,426)(681,440)])
 link(onOn,6263210:doOpen,[])
}
Add(COM,6263210,700,427)
{
 BaudRate=15
 link(onRead,2513173:doCompare,[])
 link(Port,8658105:EditText,[])
 link(BaudRate,7690426:EditText,[(713,415)(769,415)])
}
Add(EnumCOM,4937493,630,357)
{
 OutType=0
 link(onEnumPorts,8658105:doAdd,[])
}
Add(BlockFind,1696897,882,434)
{
 IncludeBlock=1
 StartBlock="T="
 EndBlock="C"
 link(onSearch,8017792:doValue,[])
}
Add(BitBtn,12852987,581,406)
{
 Left=70
 Top=66
 Width=125
 Color=0
 Font=[MS Sans Serif,8,1,16777215,1]
 Caption="Пуск"
 Point(doColor)
 link(onClick,7986566:doSwitch,[(621,412)(621,419)])
}
Add(StrPart,11914673,539,406)
{
 Char=","
 Point(Left)
 link(onSplit,12852987:doCaption,[])
 link(onPart,12852987:doColor,[])
}
Add(ChangeMon,9240330,980,434)
{
 link(onData,3396857:doString,[])
}
Add(DSC_Exec,6082265,1120,434)
{
 DSManager="rt"
 link(onExec,6263210:doRXClear,[(1168,440)(1168,595)(688,595)(688,447)])
 link(onError,6229021:doCaption,[(1179,447)(1179,708)(527,708)(527,335)])
}
Add(FormatStr,3396857,1036,434)
{
 DataCount=1
 Mask="INSERT INTO data values(julianday('now', 'localtime'), %1);"
 link(onFString,12623585:doWork2,[])
 link(Str1,8179809:Var3,[(1042,422)(994,422)(994,551)])
}
Add(Timer,4404277,560,525)
{
 Interval=32
 link(onTimer,13091773:doData,[])
}
Add(DoData,13091773,609,525)
{
 Data=Integer(30)
 link(onEventData,6263210:doRead,[(671,531)(671,461)])
}
Add(Memo,15265814,840,462)
{
 Left=225
 Top=15
 Width=210
 AddType=1
 ScrollBars=2
}
Add(Hub,8651886,812,434)
{
 link(onEvent1,1696897:doSearch,[])
 link(onEvent2,15265814:doAdd,[(836,447)(836,468)])
}
Add(Memory,8017792,938,434)
{
 link(onData,9240330:doData,[])
}
Add(HubEx,12623585,1092,434)
{
 link(onEvent,6082265:doExec,[])
}
Add(FormatStr,3233130,777,602)
{
 Mask="SELECT count() FROM data WHERE data = cast(julianday('now') AS INTEGER)+0.5; \r\n"
 link(onFString,10812135:doQuery,[])
}
Add(DSC_Query,10812135,819,602)
{
 DSManager="rt"
 link(onQuery,10911024:doEvent,[])
}
Add(IndexToChanel,10911024,861,602)
{
 link(onEvent1,9251794:doString,[])
}
Add(FormatStr,9251794,917,602)
{
 DataCount=1
 Mask="INSERT INTO data values(cast(julianday('now', 'localtime') AS INTEGER)+0.5,%1);\r\n"
 link(onFString,12623585:doWork3,[(1096,608)])
 link(Str1,8179809:Var2,[(923,578)(944,578)])
}
Add(GetDataEx,8179809,938,546)
{
 link(Data,8017792:Value,[])
}

Add(MainForm,6229021,287,119)
{
 Width=451
 Height=128
 Color=15780518
 Caption="Температура в помещении"
 BorderStyle=1
 Position=1
 Point(onClose)
 Point(Close)
 link(onCreate,7098561:doEvent1,[])
 link(Close,11914673:Left,[(293,107)(271,107)(271,249)(293,249)])
}
Add(Hub,7098561,336,133)
{
 OutCount=4
 link(onEvent1,7935657:doOpen,[])
 link(onEvent2,4937493:doEnumPorts,[(364,146)(364,153)])
 link(onEvent3,2606397:doTimer,[(362,153)(362,269)(289,269)(289,342)])
 link(onEvent4,10812135:doQuery,[(373,160)(373,398)])
}
Add(DS_SQLite,7935657,581,133)
{
 Name="rt"
 FileName="C:\\Room_temperature.db"
 link(onOpen,1699441:doExec,[])
}
Add(DSC_Exec,1699441,623,133)
{
 SQL="CREATE TABLE IF NOT EXISTS data(\r\n data REAL,\r\n t REAL);\r\n "
 DSManager="rt"
}
Add(Label,7480715,539,147)
{
 Left=60
 Top=14
 Width=83
 Height=42
 Color=15780518
 Font=[MS Sans Serif,8,1,16711680,1]
 WinStyle=4
 Caption="COM-порт №°\r\n\r\nСкорость"
 AutoSize=1
}
Add(If_else,2513173,511,224)
{
 Type=5
 Op2=String()
 link(onTrue,8651886:doEvent1,[])
}
Add(ComboBox,7690426,497,147)
{
 Left=125
 Top=39
 Width=75
 Height=21
 Color=15780518
 Font=[MS Sans Serif,8,1,0,1]
 WinStyle=4
 Strings=#3:300|3:600|4:1200|4:2400|4:4800|4:9600|5:14400|5:19200|5:28800|5:38400|5:57600|6:115200|
 Text="19200"
 Point(EditText)
}
Add(ComboBox,8658105,434,147)
{
 Left=150
 Top=13
 Width=50
 Height=21
 Color=15780518
 Font=[MS Sans Serif,8,1,0,1]
 WinStyle=4
 Text=""
 DataType=1
 ReadOnly=0
 DropDownCount=15
 Point(EditText)
}
Add(Switch,7986566,378,203)
{
 DataOn=String(255,СТОП)
 DataOff=String(0,ПУСК)
 Point(State)
 Point(onOff)
 Point(onOn)
 link(onSwitch,11914673:doSplit,[(418,209)(418,197)(281,197)(281,202)])
 link(onOff,6263210:doClose,[(429,216)(429,230)])
 link(onOn,6263210:doOpen,[])
}
Add(COM,6263210,448,217)
{
 BaudRate=15
 link(onRead,2513173:doCompare,[])
 link(Port,8658105:EditText,[])
 link(BaudRate,7690426:EditText,[(461,205)(517,205)])
}
Add(EnumCOM,4937493,378,147)
{
 OutType=0
 link(onEnumPorts,8658105:doAdd,[])
}
Add(BlockFind,1696897,630,224)
{
 IncludeBlock=1
 StartBlock="T="
 EndBlock="C"
 link(onSearch,8017792:doValue,[])
}
Add(BitBtn,12852987,329,196)
{
 Left=70
 Top=66
 Width=125
 Color=0
 Font=[MS Sans Serif,8,1,16777215,1]
 Caption="Пуск"
 Point(doColor)
 link(onClick,7986566:doSwitch,[(369,202)(369,209)])
}
Add(StrPart,11914673,287,196)
{
 Char=","
 Point(Left)
 link(onSplit,12852987:doCaption,[])
 link(onPart,12852987:doColor,[])
}
Add(ChangeMon,9240330,728,224)
{
 link(onData,3396857:doString,[])
}
Add(DSC_Exec,6082265,868,224)
{
 DSManager="rt"
 link(onExec,6263210:doRXClear,[(916,230)(916,385)(436,385)(436,237)])
 link(onError,6229021:doCaption,[(927,237)(927,498)(275,498)(275,125)])
}
Add(FormatStr,3396857,784,224)
{
 DataCount=1
 Mask="INSERT INTO data values(julianday('now', 'localtime'), %1);"
 link(onFString,12623585:doWork2,[])
}
Add(DoData,13091773,399,294)
{
 Data=Integer(30)
 link(onEventData,6263210:doRead,[(440,300)(440,251)])
}
Add(Memo,15265814,588,252)
{
 Left=225
 Top=15
 Width=210
 AddType=1
 ScrollBars=2
}
Add(Hub,8651886,560,224)
{
 link(onEvent1,1696897:doSearch,[])
 link(onEvent2,15265814:doAdd,[(584,237)(584,258)])
}
Add(Memory,8017792,686,224)
{
 link(onData,9240330:doData,[])
}
Add(HubEx,12623585,840,224)
{
 link(onEvent,6082265:doExec,[])
}
Add(DSC_Query,10812135,602,392)
{
 SQL="SELECT count() FROM data  WHERE  julianday(date('now','localtime')||' 00:00:00')=data;"
 DSManager="rt"
 link(onQuery,10911024:doEvent,[])
}
Add(IndexToChanel,10911024,644,392)
{
 link(onEvent1,9251794:doString,[])
}
Add(FormatStr,9251794,686,392)
{
 DataCount=1
 Mask="INSERT INTO data values(cast(julianday('now', 'localtime') AS INTEGER)+0.5,%1);\r\n"
 link(onFString,12623585:doWork3,[(844,398)])
 link(Str1,8017792:Value,[])
}
Add(Timer,2606397,315,336)
{
 Enable=1
 link(onTimer,12753096:doQuery,[])
}
Add(DSC_Query,12753096,357,336)
{
 SQL="SELECT (strftime('%M','now','localtime')*60 + strftime('%S', 'now','localtime')) % (15*60);"
 DSManager="rt"
 link(onQuery,11179669:doEvent,[])
}
Add(IndexToChanel,11179669,399,336)
{
 Count=1
 link(onEvent1,13091773:doData,[(443,342)(443,321)(387,321)(387,300)])
}
