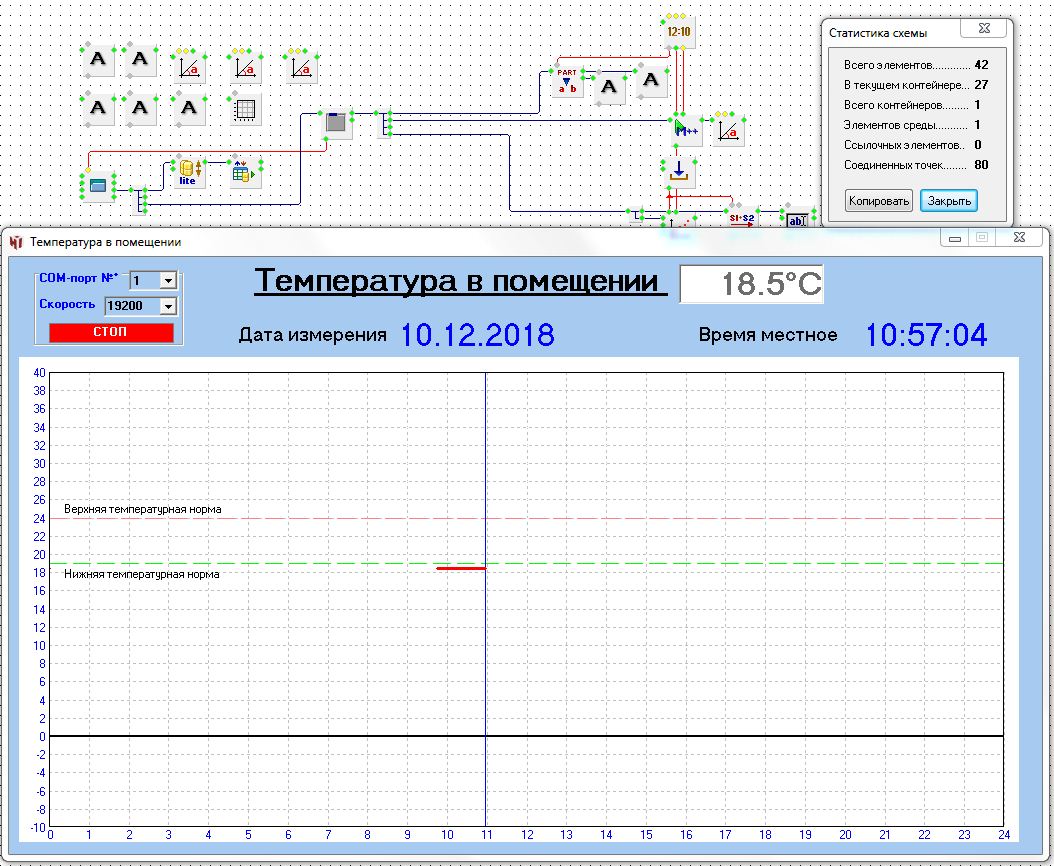

Add(MainForm,15663453,245,182)
{
 Width=289
 Height=134
 Color=15780518
 Caption="Температура в помещении"
 BorderStyle=1
 Position=1
 Point(onClose)
 Point(Close)
 link(onCreate,7098561:doEvent1,[])
 link(Close,11914673:Left,[(251,170)(229,170)(229,312)(251,312)])
}
Add(Hub,7098561,294,196)
{
 OutCount=3
 link(onEvent1,7935657:doOpen,[])
 link(onEvent3,4937493:doEnumPorts,[])
}
Add(DS_SQLite,7935657,539,196)
{
 Name="rt"
 FileName="Room_temperature.db"
 link(onOpen,1699441:doExec,[])
}
Add(DSC_Exec,1699441,581,196)
{
 SQL="CREATE TABLE IF NOT EXISTS data(\r\n data REAL,\r\n t REAL);\r\n "
 DSManager="rt"
}
Add(Label,7480715,497,210)
{
 Left=60
 Top=14
 Width=83
 Height=42
 Color=15780518
 Font=[MS Sans Serif,8,1,16711680,1]
 WinStyle=4
 Caption="COM-порт №°\r\n\r\nСкорость"
 AutoSize=1
}
Add(If_else,2513173,455,287)
{
 Type=5
 Op2=String()
 link(onTrue,1696897:doSearch,[])
}
Add(ComboBox,7690426,455,210)
{
 Left=125
 Top=39
 Width=75
 Height=21
 Color=15780518
 Font=[MS Sans Serif,8,1,0,1]
 WinStyle=4
 Strings=#3:300|3:600|4:1200|4:2400|4:4800|4:9600|5:14400|5:19200|5:28800|5:38400|5:57600|6:115200|
 Text="19200"
 Point(EditText)
}
Add(ComboBox,8658105,392,210)
{
 Left=150
 Top=13
 Width=50
 Height=21
 Color=15780518
 Font=[MS Sans Serif,8,1,0,1]
 WinStyle=4
 Text=""
 DataType=1
 ReadOnly=0
 DropDownCount=15
 Point(EditText)
}
Add(Switch,7986566,336,266)
{
 DataOn=String(255,СТОП)
 DataOff=String(0,ПУСК)
 Point(State)
 Point(onOff)
 Point(onOn)
 link(onSwitch,11914673:doSplit,[(376,272)(376,260)(239,260)(239,272)])
 link(onOff,6263210:doClose,[(387,279)(387,293)])
 link(onOn,6263210:doOpen,[])
}
Add(COM,6263210,406,280)
{
 link(onWrite,6263210:doRead,[(445,286)(445,326)(395,326)(395,314)])
 link(onRead,2513173:doCompare,[])
 link(Port,8658105:EditText,[])
 link(BaudRate,7690426:EditText,[(419,268)(475,268)])
}
Add(EnumCOM,4937493,336,210)
{
 OutType=0
 link(onEnumPorts,8658105:doAdd,[])
}
Add(BlockFind,1696897,497,287)
{
 IncludeBlock=1
 StartBlock="T="
 EndBlock="C"
 link(onSearch,9240330:doData,[])
}
Add(BitBtn,12852987,287,266)
{
 Left=70
 Top=66
 Width=125
 Color=0
 Font=[MS Sans Serif,8,1,16777215,1]
 Caption="Пуск"
 Point(doColor)
 link(onClick,7986566:doSwitch,[])
}
Add(StrPart,11914673,245,266)
{
 Char=","
 Point(Left)
 link(onSplit,12852987:doCaption,[])
 link(onPart,12852987:doColor,[])
}
Add(ChangeMon,9240330,539,287)
{
 link(onData,3396857:doString,[])
}
Add(DSC_Exec,6082265,623,287)
{
 DSManager="rt"
 link(onExec,6263210:doRXClear,[(665,293)(665,332)(386,332)(386,300)])
 link(onError,15663453:doCaption,[(674,300)(674,158)(222,158)(222,188)])
}
Add(FormatStr,3396857,581,287)
{
 DataCount=1
 Mask="INSERT INTO data values(julianday('now', 'localtime'),%1);"
 link(onFString,6082265:doExec,[])
}

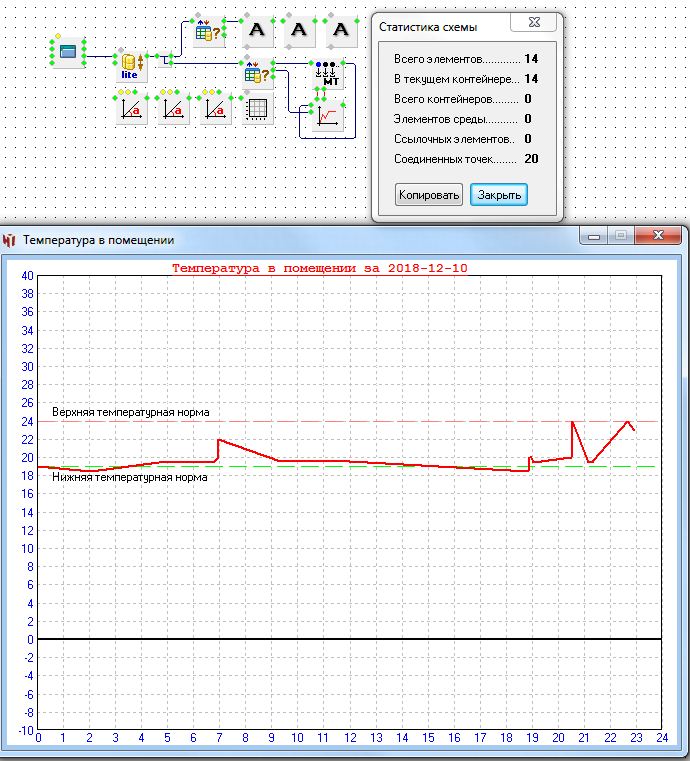

Add(MainForm,15663453,77,182)
{
 Width=685
 Height=523
 Color=15780518
 Caption="Температура в помещении"
 BorderStyle=1
 Position=1
 Point(onClose)
 Point(Close)
 link(onCreate,7935657:doOpen,[])
}
Add(Plotter,6761042,266,238)
{
 Left=5
 Top=5
 Width=670
 Height=485
 Color=16777215
 Enabled=1
 Name="tp"
 GridX=24
 GridY=25
 MinH=-10
 MaxH=40
 MaxW=24
}
Add(Label,7506625,56,238)
{
 Left=50
 Top=150
 Width=165
 Color=12639424
 Transparent=0
 Caption="Верхняя температурная норма"
}
Add(Label,5273543,98,238)
{
 Left=50
 Top=215
 Width=160
 Color=12639424
 Transparent=0
 Caption="Нижняя температурная норма"
}
Add(PlotAxis,16137541,224,238)
{
 Grapher="tp"
 Name="ноль"
 Color=0
 Size=2
}
Add(PlotAxis,4916857,182,238)
{
 Grapher="tp"
 Name="19"
 Color=65280
 Style=1
 Y=19
}
Add(PlotAxis,5954945,140,238)
{
 Grapher="tp"
 Name="24"
 Color=8421631
 Style=1
 Y=24
}
Add(DS_SQLite,7935657,140,196)
{
 Name="chrt"
 FileName="C:\\Room_temperature.db"
 link(onOpen,14820311:doEvent1,[])
}
Add(PlotLines,14221590,336,245)
{
 Grapher="tp"
 Size=2
 link(ValueY,12918382:Value1,[])
 link(ValueX,12918382:Value2,[])
}
Add(DSC_Query,2261516,266,203)
{
 SQL="select t,strftime('%H',data)+cast(strftime('%M',data) as Real)/60 AS tm from data ORDER BY tm;"
 DSManager="chrt"
 link(onQuery,12918382:doValue,[])
 link(onColumns,14221590:doClear,[(313,216)(313,258)])
}
Add(MT_MultiMem,12918382,336,203)
{
 link(onData,14221590:doAdd,[(380,209)(380,284)(324,284)(324,251)])
}
Add(Label,6604675,266,161)
{
 Left=170
 Top=5
 Width=197
 Height=21
 Color=15780518
 Font=[Courier New,10,5,255,204]
 Transparent=0
 Caption="Температура в помещении "
}
Add(DSC_Query,2330491,217,161)
{
 SQL="select "Температура в помещении за "||date(data) from data;"
 DSManager="chrt"
 link(onQuery,6604675:doText,[])
}
Add(Hub,14820311,182,196)
{
 link(onEvent1,2330491:doQuery,[(206,202)(206,167)])
 link(onEvent2,2261516:doQuery,[])
}
